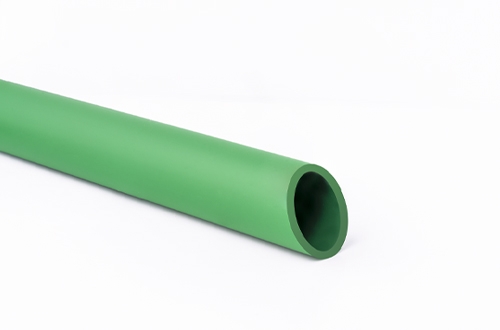

PN 10 Cold Water Pipe
| Code | de, mm | di, mm | s, mm | L, mm | SDR | m/Pack |
| V1A0120L4 | 20 | 16,2 | 1,9 | 4000 | 11 | 100 |
| V1A0125L4 | 25 | 20,4 | 2,3 | 4000 | 11 | 80 |
| V1A0132L4 | 32 | 26 | 3 | 4000 | 11 | 40 |
| V1A0140L4 | 40 | 32,6 | 3,7 | 4000 | 11 | 20 |
| V1A0150L4 | 50 | 40,8 | 4,6 | 4000 | 11 | 20 |
| V1A0163L4 | 63 | 51,4 | 5,8 | 4000 | 11 | 12 |
| V1A0175L4 | 75 | 61,2 | 6,9 | 4000 | 11 | 8 |
| V1A0190L4 | 90 | 73,6 | 8,2 | 4000 | 11 | 8 |
| V1A0111L4 | 110 | 90 | 10 | 4000 | 11 | 4 |
| V1A0112L4 | 125 | 102,2 | 11,4 | 4000 | 11 | 4 |
| V1A0116L4 | 160 | 130,8 | 14,6 | 4000 | 11 | 4 |
SaniPlastica PN 10 (SDR 11) Pipes are suitable for cold water installations and low pressure systems. |
The polypropylene pipes PN 10 are used for pipelines of cold water supply with pressure of 1 MPa. SaniPlastica polypropylene pipes are made of type 3 polypropylene - copolymer random PP-R-100. Maximum operating temperature: +40 °С. SaniPlastica pipes and fittings have high sanitary and hygienic properties, and absolute corrosion resistance. Polypropylene pipes are easy to install and repair.
Specifications:
- Type: SaniPlastica polypropylene pipes and fittings
- Purpose: for cold water supply
- Maximum operating temperature: + 40° С
- Material: PPR 100 type 3
- Colour: White, gray, green
- Life time: 50 years
- ISO 15874, DIN 8077/8078
Application area:
- in cold water supply systems, in water treatment systems of residential, administrative and industrial buildings;
- when laying pneumatic lines, technological pipelines (subject to transportation of substances to which polypropylene is chemically resistant);
- for external networks of cold water supply (including channelless laying);
- in the combined fire water supply systems.
