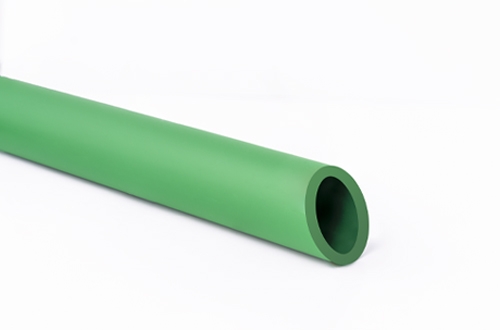

PN 16 Hot & Cold Water Pipe
| Code | de, mm | di, mm | s, mm | L, mm | SDR | m/Pack |
| V1A0320L4 | 20 | 14,4 | 2,8 | 4000 | 7,4 | 100 |
| V1A0325L4 | 25 | 18 | 3,5 | 4000 | 7,4 | 80 |
| V1A0332L4 | 32 | 19,2 | 4,4 | 4000 | 7,4 | 40 |
| V1A0340L4 | 40 | 29 | 5,5 | 4000 | 7,4 | 20 |
| V1A0350L4 | 50 | 36,2 | 6,9 | 4000 | 7,4 | 20 |
| V1A0363L4 | 63 | 45,8 | 8,6 | 4000 | 7,4 | 12 |
| V1A0375L4 | 75 | 54,5 | 10,3 | 4000 | 7,4 | 8 |
| V1A0390L4 | 90 | 65,4 | 12,3 | 4000 | 7,4 | 8 |
| V1A0311L4 | 110 | 79,8 | 15,1 | 4000 | 7,4 | 4 |
| V1A0312L4 | 125 | 90,8 | 17,1 | 4000 | 7,4 | 4 |
| V1A0316L4 | 160 | 116,2 | 21,9 | 4000 | 7,4 | 4 |
SaniPlastica PN 16 (SDR 7,4) Pipes are used for both hot & cold water installations and higher pressure systems.
Polypropylene pipes PN 16 are used for hot and cold water supply pipelines with a pressure of 1,6 MPa at t = 20 °С, of 0,6 MPa at t = 75 °С. SaniPlastica pipes are made of PP-R 100 polypropylene. Pipes have good thermal insulation properties, chemical resistance to more than 300 substances and solutions, noise absorbing properties.
Maximum operating temperature: +70 °С, briefly up to +95 °С.
Specifications:
- Type: SaniPlastica polypropylene pipes and fittings
- Purpose: for water supply
- Maximum operating temperature: + 70° С
- Material: PPR 100 type 3
- Colour: White, gray, green
- Life time: 50 years
- ISO 15874, DIN 8077/8078
Application area:
- in cold water supply systems, in water treatment systems of residential, administrative and industrial buildings;
- when laying pneumatic lines, technological pipelines (subject to transportation of substances to which polypropylene is chemically resistant);
- for external networks of cold water supply (including channelless laying);
- in the combined fire water supply systems.
